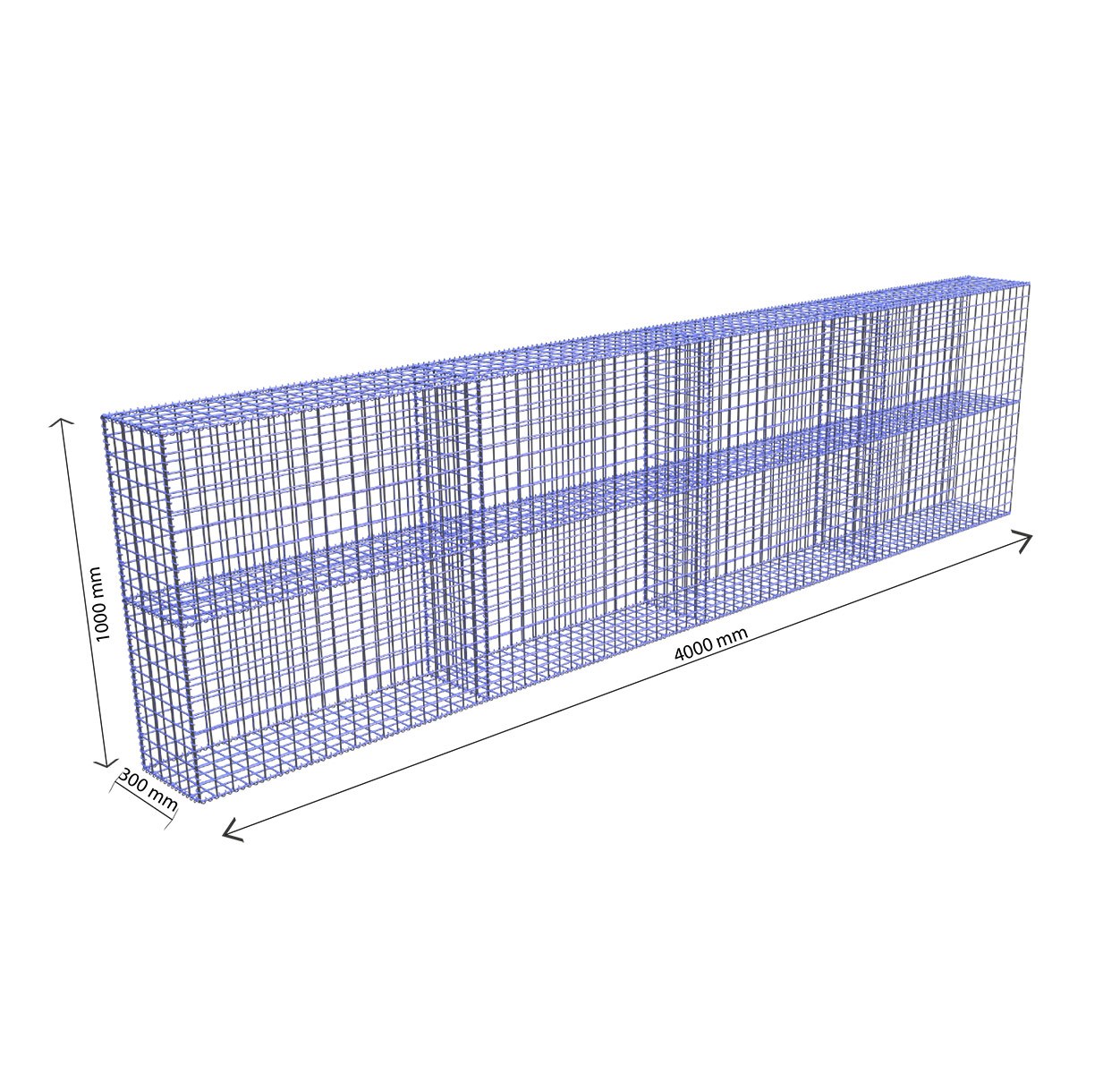

Gabion (Config A) 4000 x 1000 x 300

Length 4000mm
Height 1000mm
Depth 300mm
Weight 110kg
Select Length
How to choose your length
Qty
$541.00

Standard length sets


Price
1m length - 1000mm
$144.00
2m length - 2000mm
$278.00
6m length - 6000mm
$798.00
7m length - 7000mm
$927.00
8m length - 8000mm
$1,051.00
9m length - 9000mm
$1,174.00
10m length - 10000mm
$1,298.00
3m length - 3000mm
$412.00
4m length - 4000mm
$541.00
5m length - 5000mm
$670.00

Each set includes

Components
Quantity
Front of Basket
8 x 1000x500mm welded wire mesh panels
Back of Basket
8 x 1000x500mm welded wire mesh panels
Top of Basket
4 x 1000x300mm welded wire mesh panels
Bottom of Basket
4 x 1000x300mm welded wire mesh panels
Horizontal Dividers
4 x 1000x300mm welded wire mesh panels
End Panels
10 x 500x300mm welded wire mesh panels
Spiral Joiners
24 x 980mm length, 20 x 480mm length, 15 x 280mm length
Internal Supporting Braces
8 x 320mm length (1 of each type to be used at 1m intervals)
NOTE: Each gabion basket set is made up from individual components, the largest being of 1m length.  As a result the welded wire mesh panels act as dividers between 1m long modules, joining them together to achieve a desired set length.  We do not use any panel larger than 1m in length as it is too difficult to handle and transport.

How it arrives

Gabion Baskets

How to assemble Gabion Baskets

All baskets can be built without any special tools taking 5 - 7 minutes each.

3 : 41
How to assemble Gabion Baskets
3 : 41
Rock selection for Gabion Baskets

Rock selection for Gabion Baskets

We look at three types of rock - polished river rock, crushed granite, and Castlemaine lineal rock.
