Gabion SETA 1000X1000X300 - Gabion Walls Australia

Standard length sets

Price

1m length - 1000mm

$144.00

2m length - 2000mm

$278.00

6m length - 6000mm

$798.00

7m length - 7000mm

$927.00

8m length - 8000mm

$1,051.00

9m length - 9000mm

$1,174.00

10m length - 10000mm

$1,298.00

3m length - 3000mm

$412.00

4m length - 4000mm

$541.00

5m length - 5000mm

$670.00

Each set includes

Components

Quantity

Front of Basket

2 x 1000x500mm welded wire mesh panels

Back of Basket

2 x 1000x500mm welded wire mesh panels

Top of Basket

1 x 1000x300mm welded wire mesh panels

Bottom of Basket

1 x 1000x300mm welded wire mesh panels

Horizontal Dividers

1 x 1000x300mm welded wire mesh panels

End Panels

4 x 500x300mm welded wire mesh panels

Spiral Joiners

6 x 980mm length, 8 x 480mm length, 6 x 280mm length

Internal Supporting Braces

2 x 320mm length (1 of each type to be used at 1m intervals)

NOTE: Each gabion basket set is made up from individual components, the largest being of 1m length. As a result the welded wire mesh panels act as dividers between 1m long modules, joining them together to achieve a desired set length. We do not use any panel larger than 1m in length as it is too difficult to handle and transport.

How to assemble Gabion Baskets

All baskets can be built without any special tools taking 5 - 7 minutes each.

3 : 41

3 : 41

Rock selection for Gabion Baskets

We look at three types of rock - polished river rock, crushed granite, and Castlemaine lineal rock.

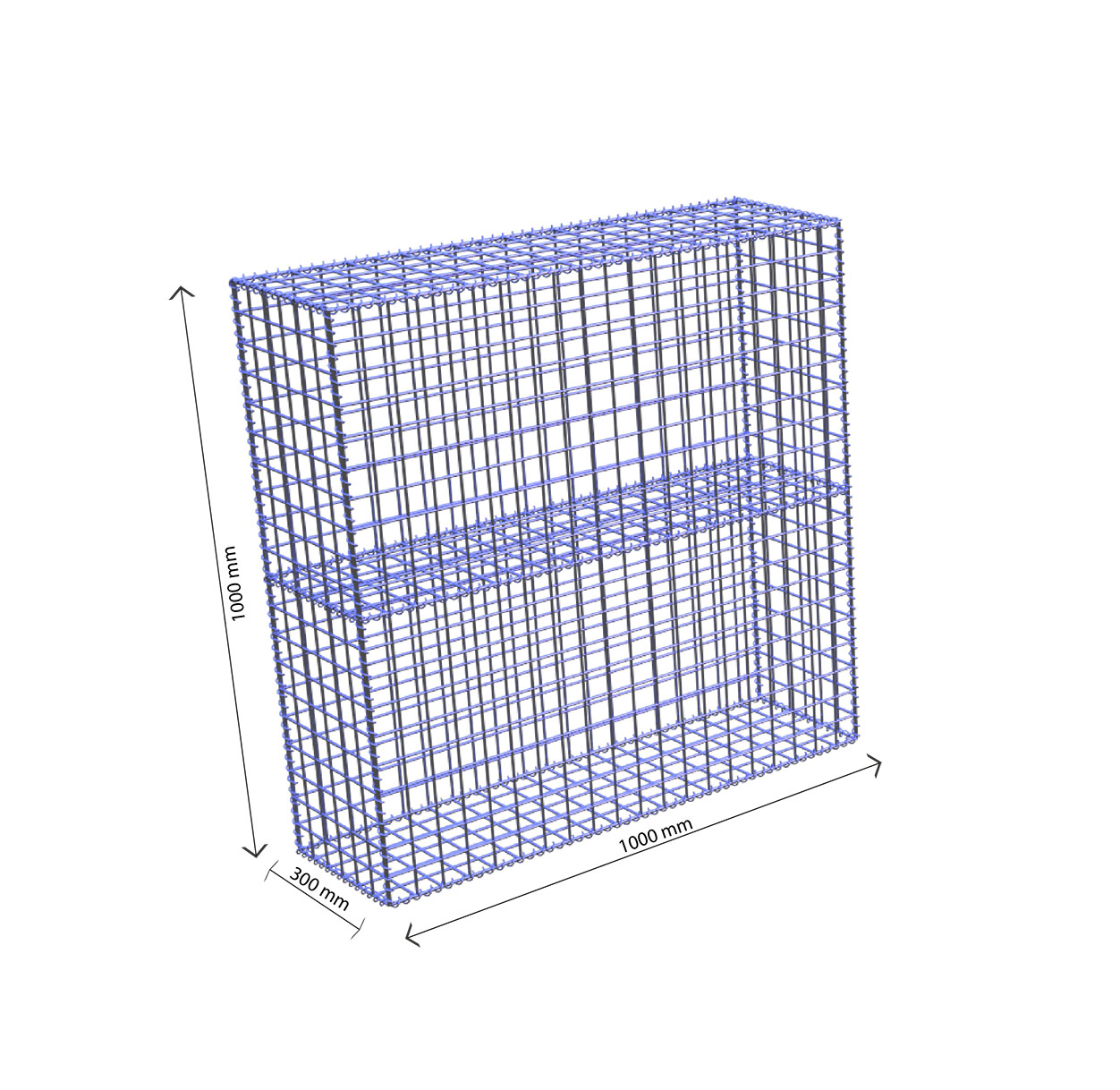

Gabion (Config A) 1000 x 1000 x 300
